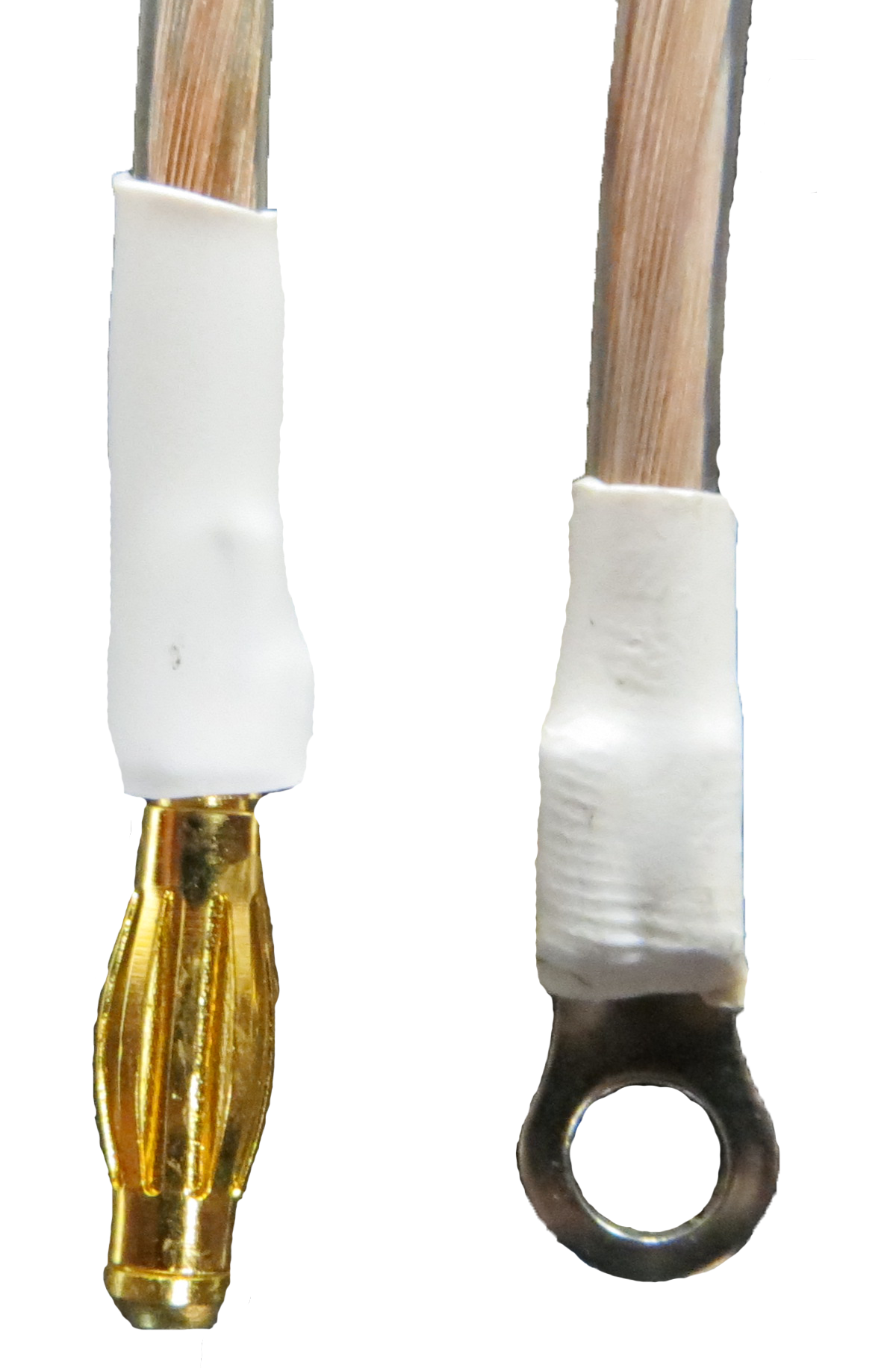

Yshield GCS + Outlet Tester + Grounding Plug + Grounding Cable - 1 meter in length

YShield GCS Grounding Connector Kit – Grounding Cable Optional

$25.00$55.00

Grounding Connector Kit

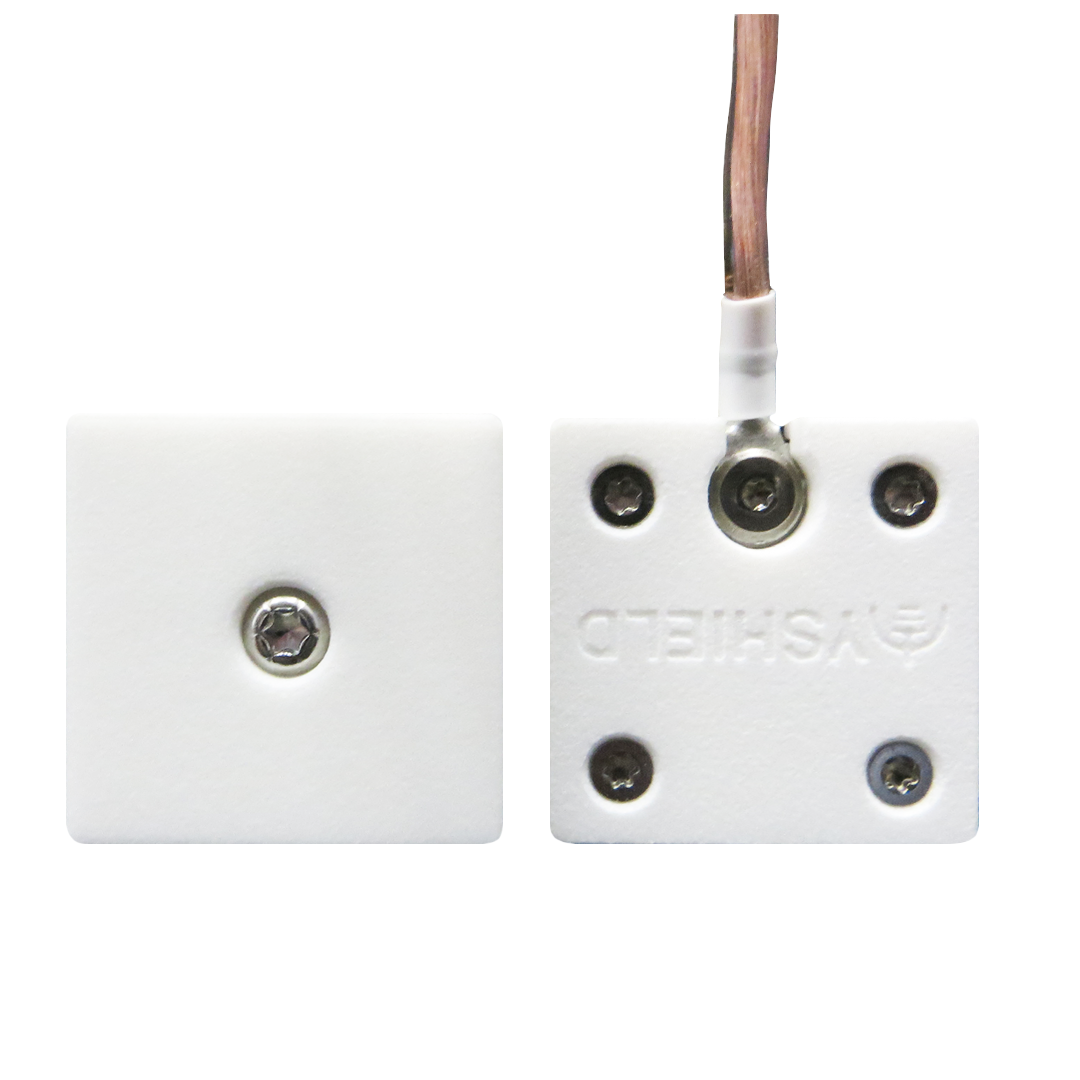

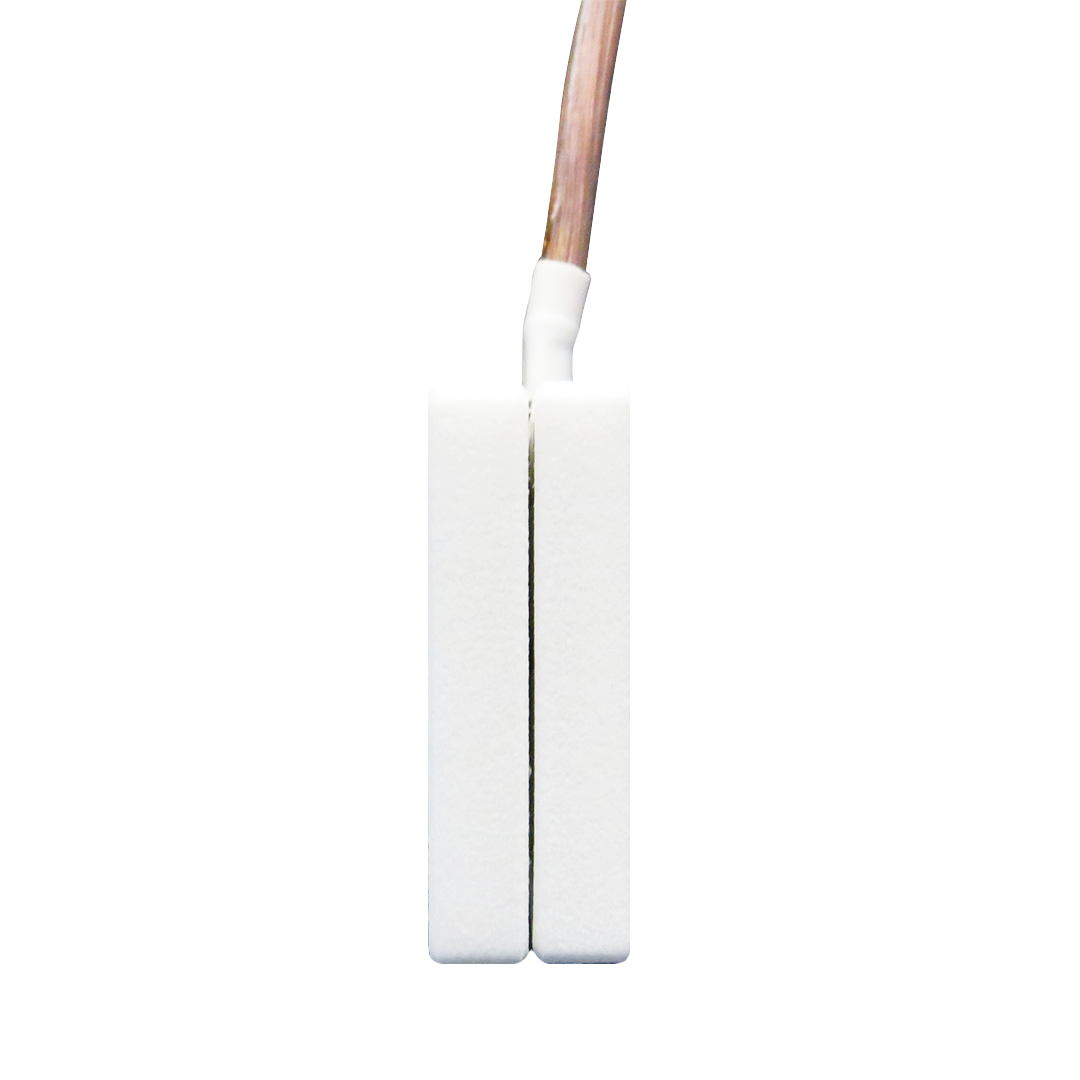

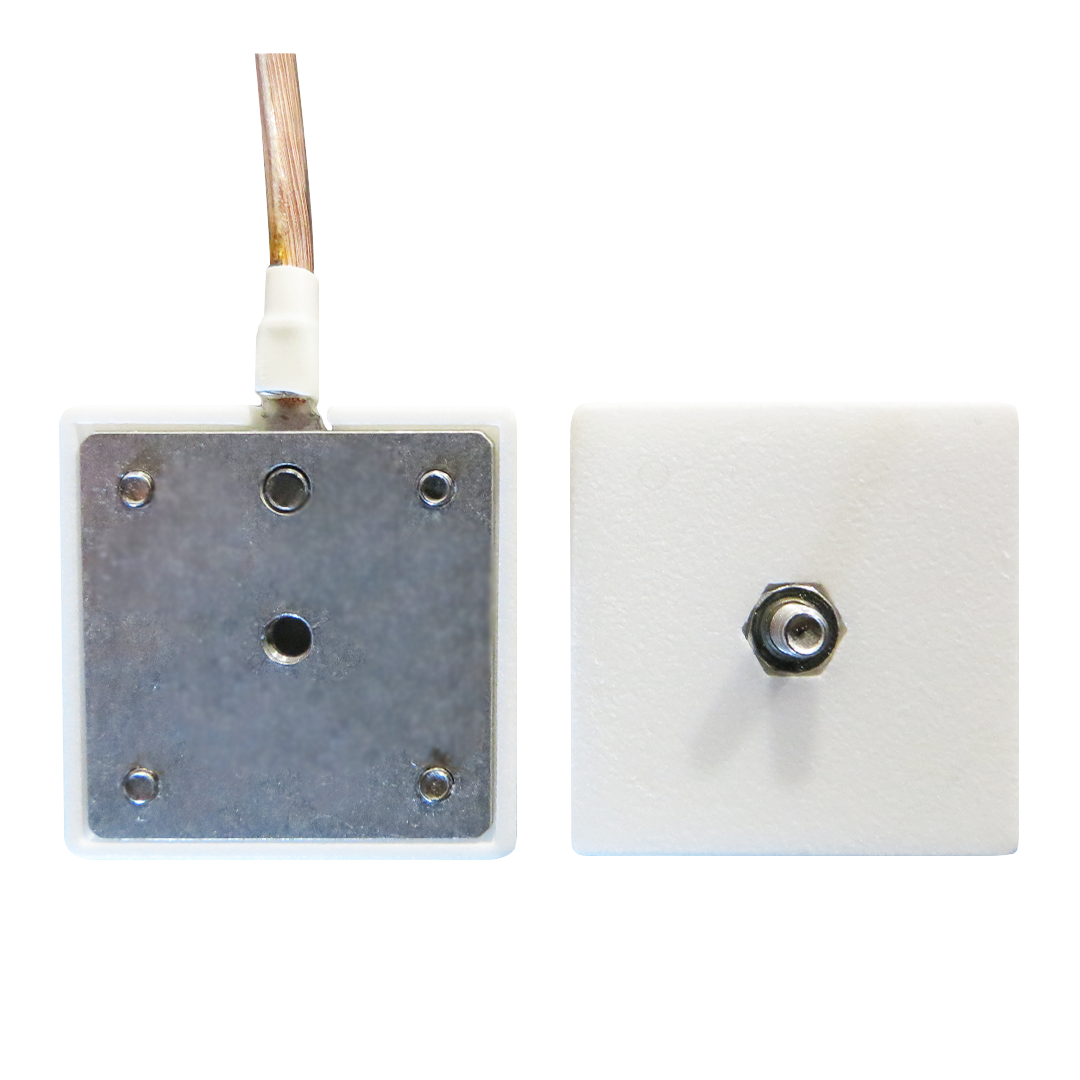

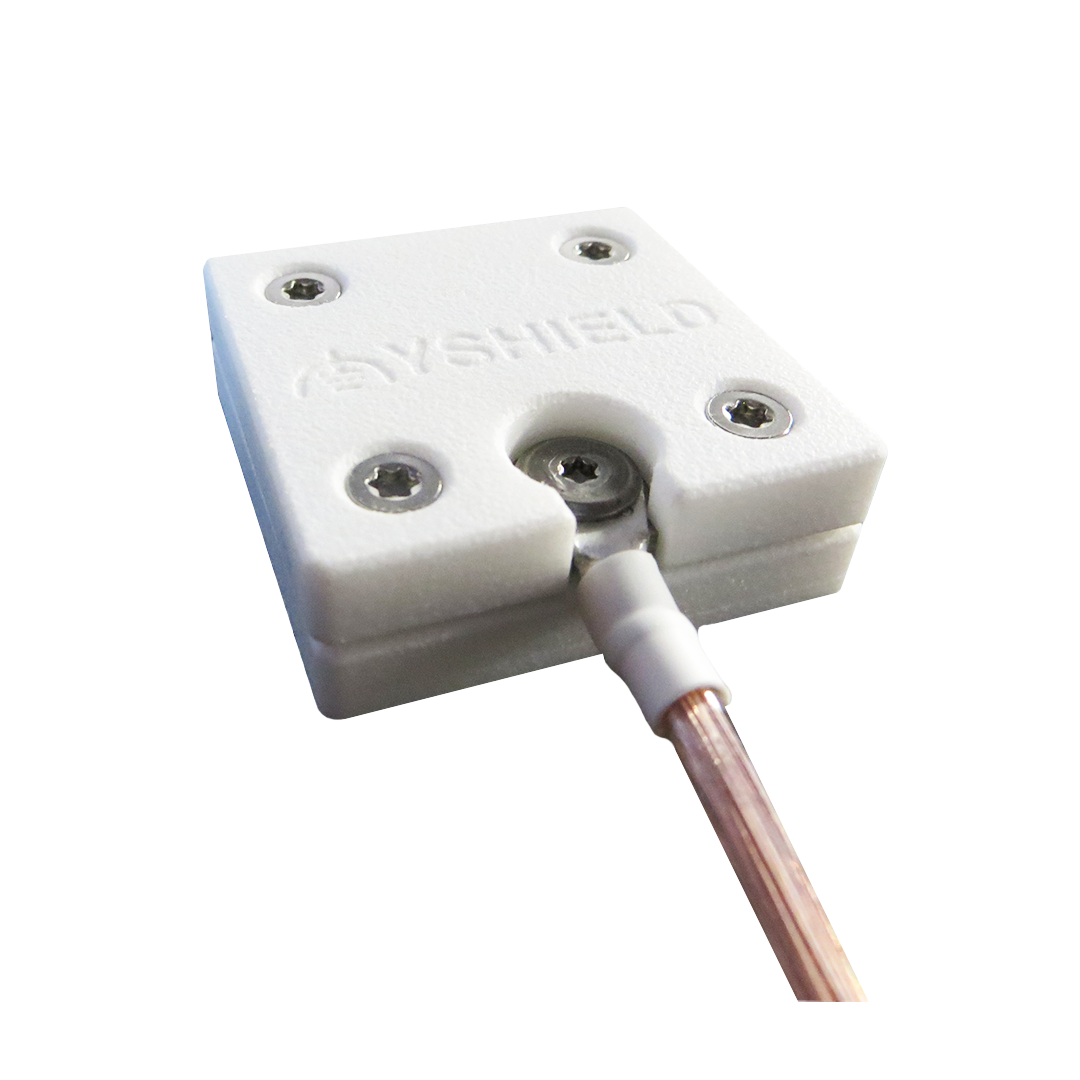

YShield Grounding connection with two plates that get screwed together. For all electrically conductive fabrics, fleeces, meshes. The two connecting plates must be screwed together – the material that is supposed to be grounded needs therefore to be perforated.

Product Manuals

Description

Yshield GS Ground Connector Kit – Grounding Cable Optional

  • Yshield GS Ground Connector kit – with an optional ground cable
  • Connectivity: 1 cable connection

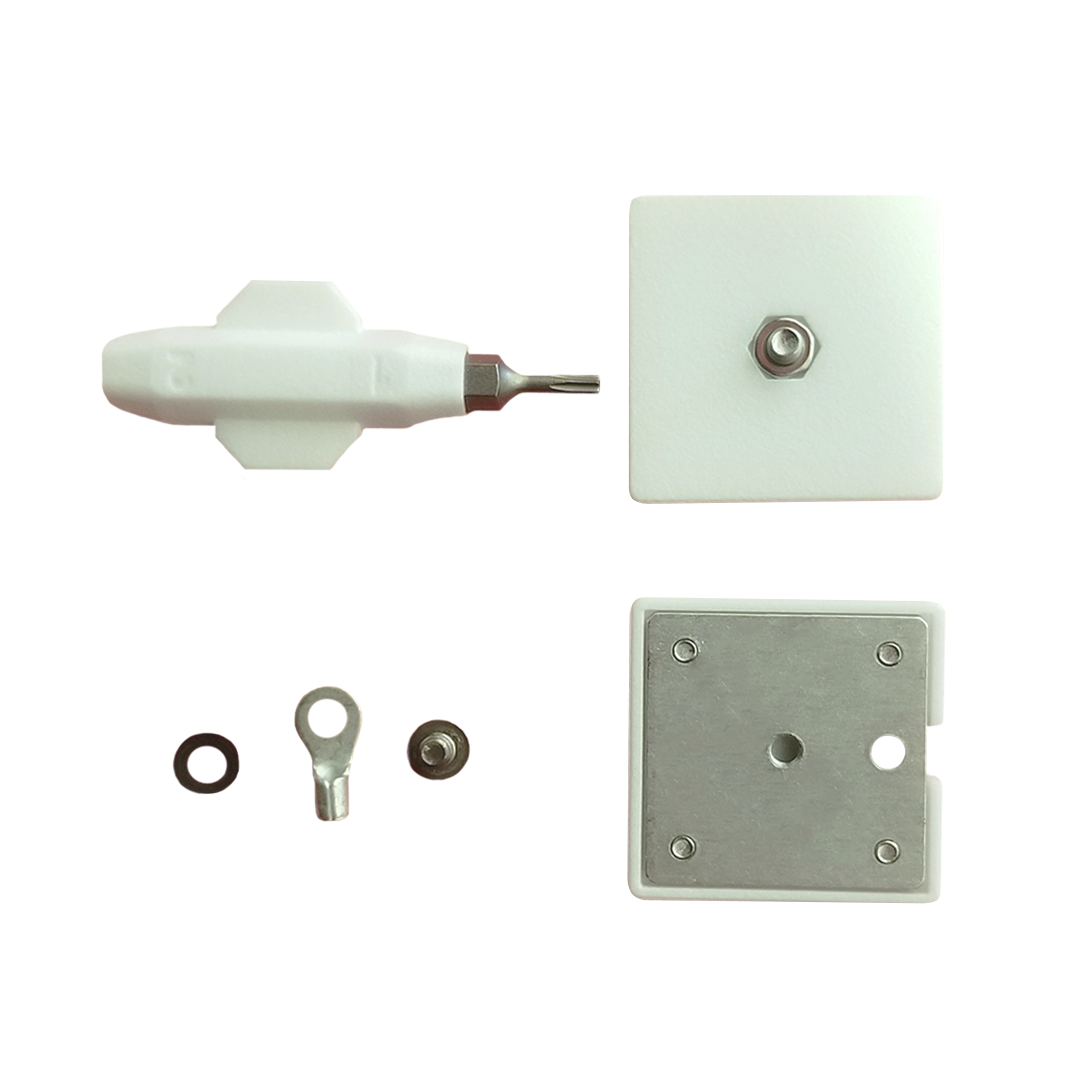

  • Includes: 2 connecting plates 36x36x6 mm, all necessary screws, discs, cables lugs and a screwing tool with Torx®-Bits.
  • Cable not included in the scope of delivery. Instead, a pre-assembled grounding cable GL is recommended

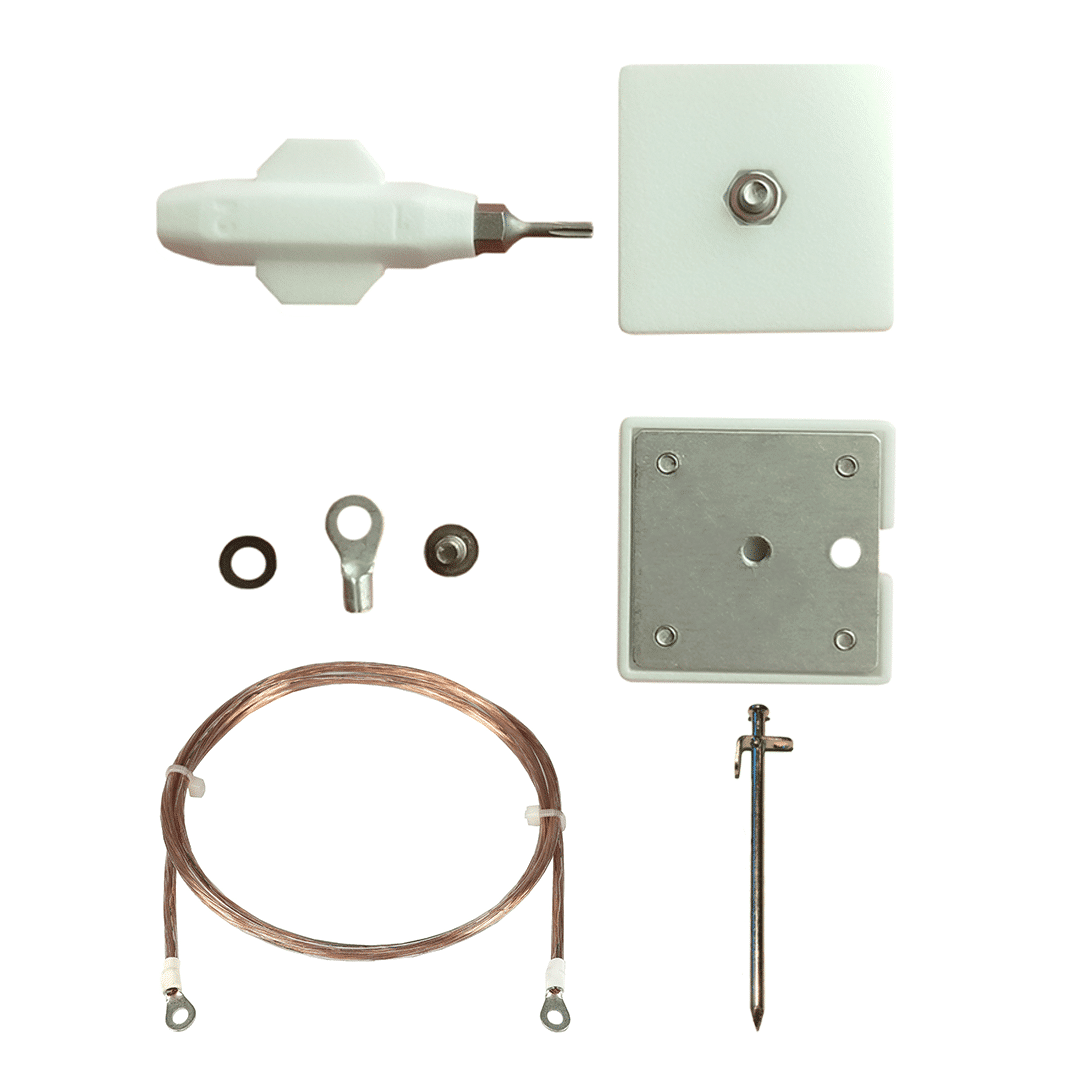

Includes:

  • 2 Metal (Aluminum) plates 28 x 28 x 6 mm
  • 1 Screws
  • 5 meter grounding cable pre-assembled
  • Grounding Installation Instructions

Optional Add-Ons:

  • Ground Peg: Use for grounding to Earth – Length = 8in.
  • Ground Plug + Outlet Tester: Use for grounding to building’s electrical ground.

Installation Note:

This kit contains a screw which will need to pass through the material to hold both plates together and create a hole in the material.  This will not result in a loss of shielding if the grounding plates remain in place.

About Safe and Sound RF-ECO EMF Paint

This exceptional product by Safe Living Technologies Inc. has a pure-acrylics binder for good adhesion on a wide variety of surfaces and substrates. This includes latex paint, construction board, cement, plaster, polystyrene and masonry.

This paint is a non-toxic high quality pure acrylic binder which is environmentally friendly, and contains only 0.027 oz/Gal. VOC’s – which is classified as a Zero VOC Paint.

Infused with natural graphite and carbon black for shielding, RF-ECO 5G Shielding Paint is electrically conductive and black in colour. Grounding the paint is required and to be completed by a locally licensed electrician. Comes in an easy-to-pour container with a storage lid and has a shelf life of 3+ years.

For 5G protection: low-band from 600 MHz to 1 GHz, mid-band from 1 GHz to 6 GHz, and high-band from 20 GHz to ~ 40 GHz.

YShield GCS Grounding Connector Kit – Grounding Cable Optional

Additional information

Weight0.2 kg
Dimensions4 × 15 × 12 cm
