Yshield EBX10 Grounding Tape Application

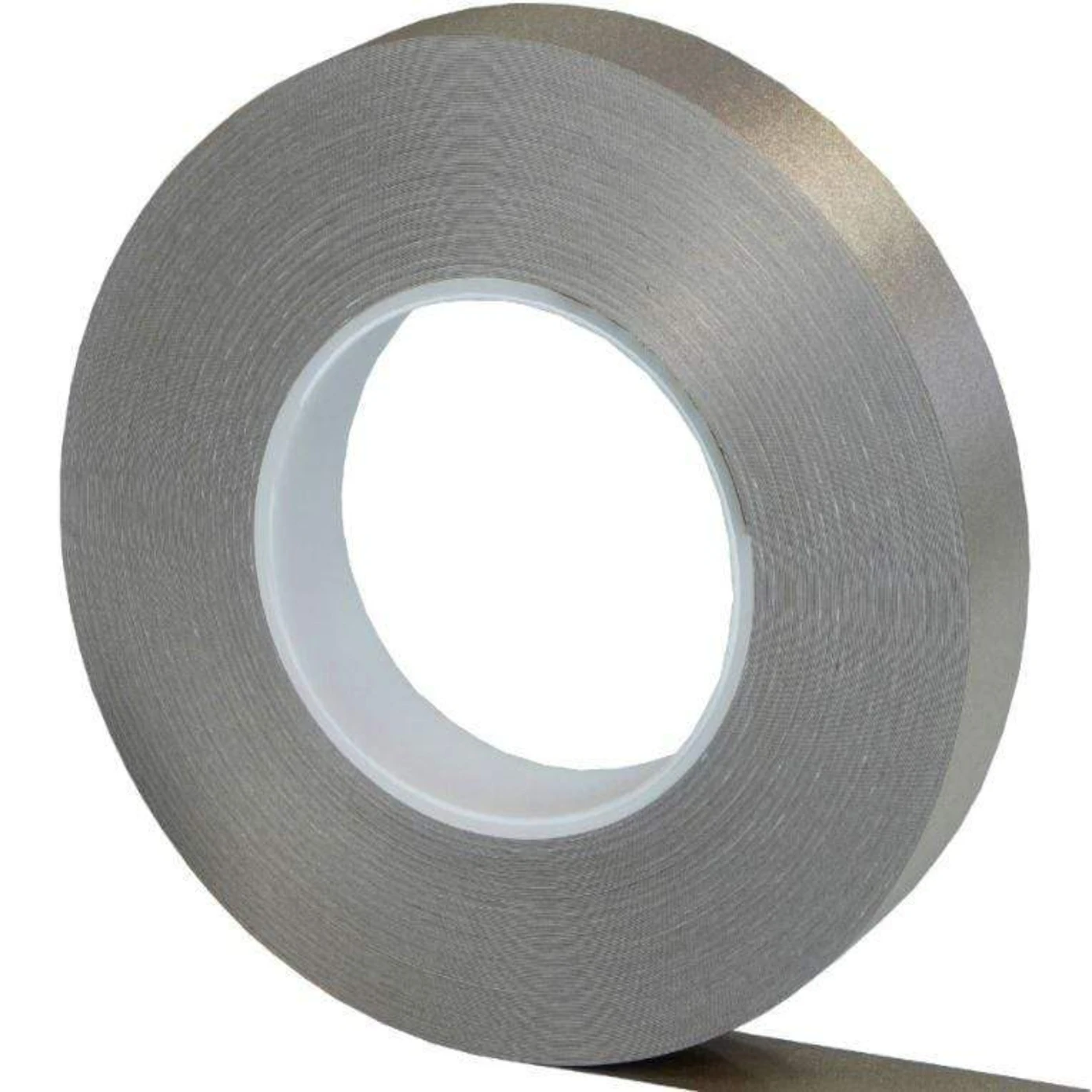

Grounding Tape – GSX10 / GSX50

(1 customer review)


Grounding Tape For EMF Blocking Paint

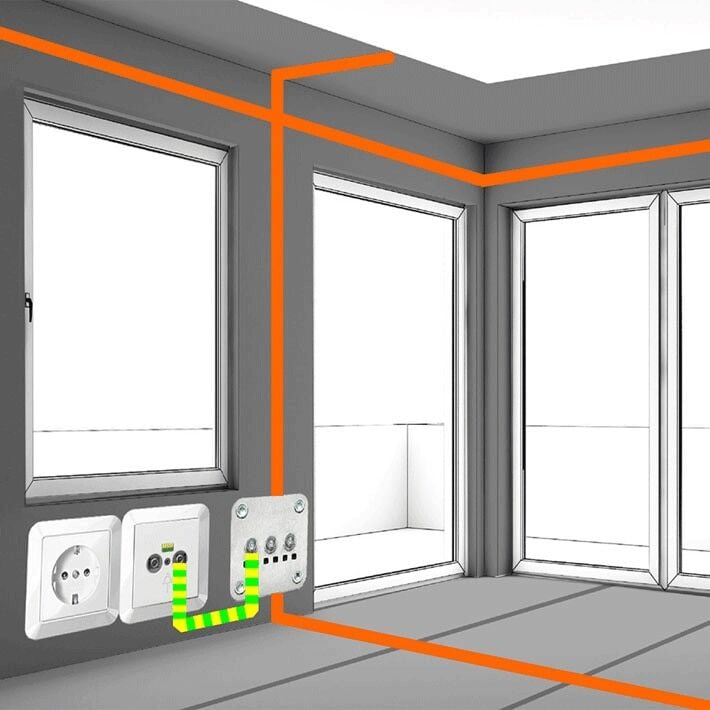

Self-adhesive, conductive fleece grounding tape for under shielding paints, to bridge cracks and to join adjacent surfaces. 10 meter (32.8 feet) Superior adhesive force 0.8 kg / inch.

Product Manuals


Grounding Tape – GSX10 / GSX50

The glue on GSX10 & GSX50 are electrically conductive and therefore GSX10 & GSX50 can be applied under or on top of the Yshield shielding paint. Ideally it is applied underneath the layer of Yshield.

With a new and improved glue, GSX10 & GSX50 sticks very well even on difficult underground surfaces.

For surfaces that the tape will not adhere to, we recommend the AF3 Carbon Fiber Additive.


  • Self-adhesive
  • With electrically conductive glue
  • Adhesive force 0.8 kg / inch
  • Width 2.5 cm, length 10 m (32.8 feet) or 50 m (164.5 feet), thickness 0.11 mm

Optional Add-Ons:

  • Ground Peg: Use for grounding to Earth.
  • Ground Plug + Outlet Tester: Use for grounding to build ing’s electrical ground.


  • Grounding Tape Roll GSX10 (10m Meters – 32.8 ft)
  • Grounding Tape Roll GSX50 (50m Meters – 164.5 ft)
Grounding Tape – GSX10 / GSX50

Additional information

Weight 0.01 kg
Dimensions N/A



1 review for Grounding Tape – GSX10 / GSX50

  1. Anonymous (verified owner)

    Quite easy to apply
