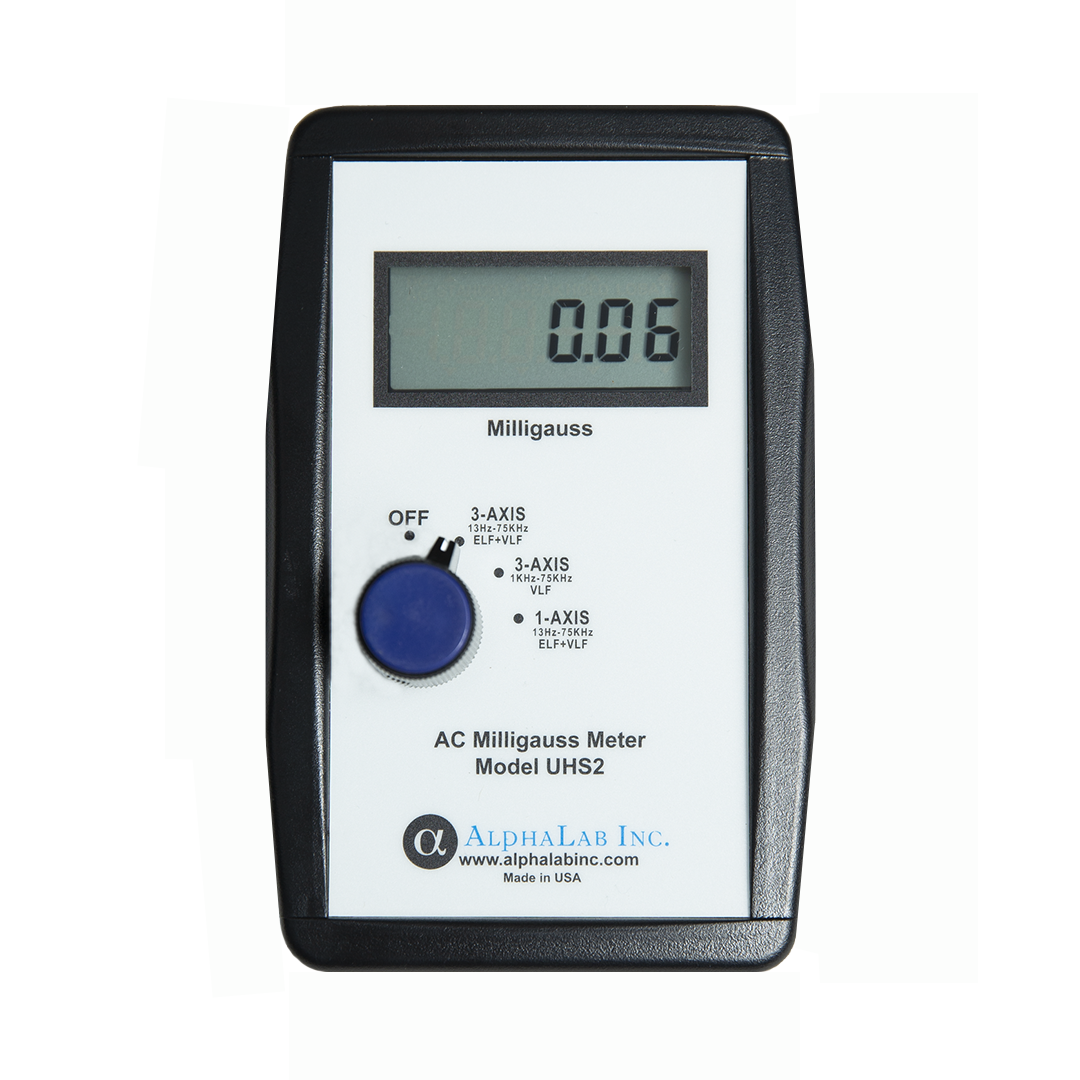

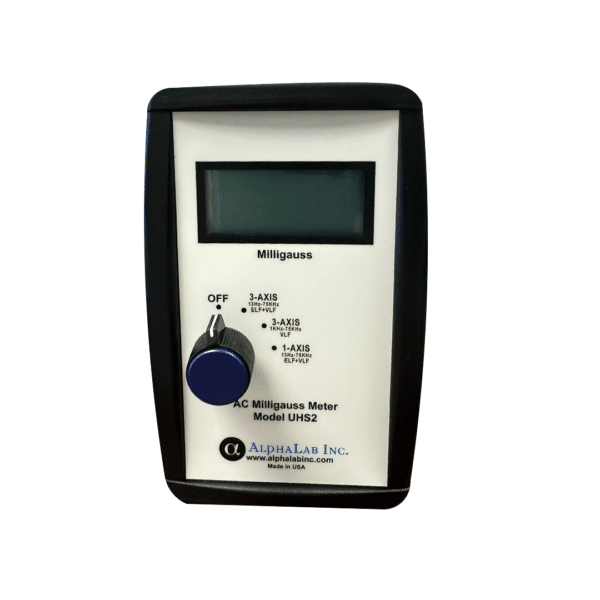

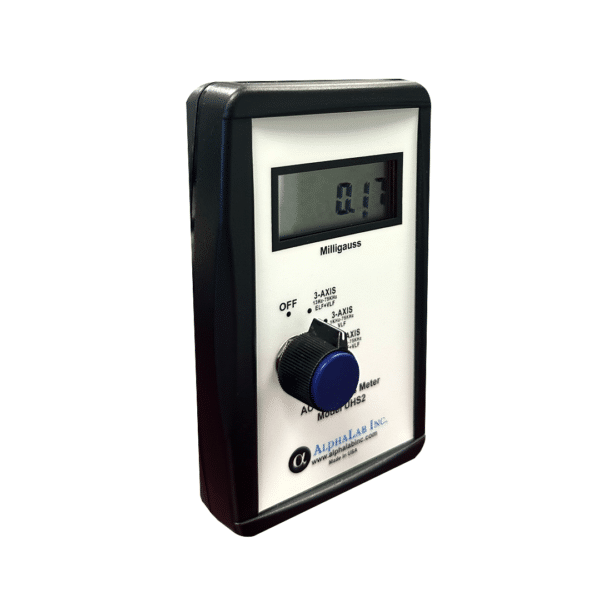

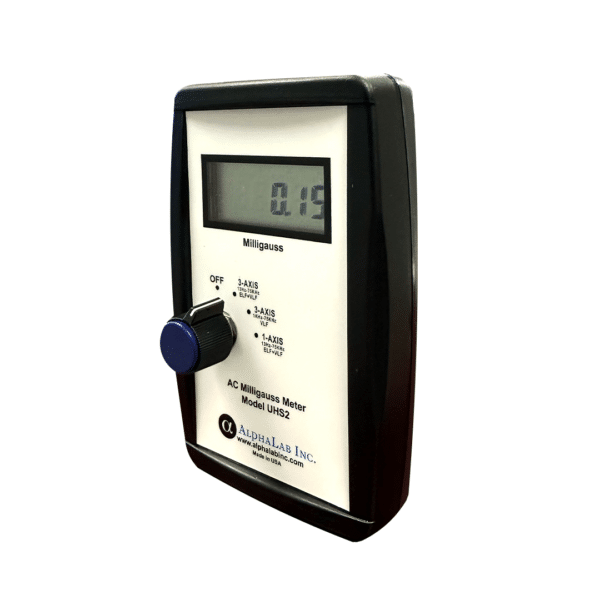

UHS2 3-Axis AC Gaussmeter

$390.00

Our Most Economical 3D Gaussmeter

This digital Gaussmeter is used to measure AC Magnetic Fields across 1 axis for source location or 3 axis simultaneously for total exposure measurements.

The UHS2 measures frequencies between 13 Hz to 75 000 Hz (75kHz).

Product Manuals

31 in stock

SKU: SLT-1388 Categories: , ,

Description

UHS2 Gaussmeter

Features

  • Wide Frequency Detection Range 13 Hz to 75 kHz (75 000 Hz)
  • Offers the option to measure with 3-axis simultaneously or 1-axis to aid in locating sources
  • Capture Magnetic Fields from all low frequency polluters, sources such as all standard household appliances, electrical wiring and wiring errors, power lines and transformers
  • Identifies higher frequency sources such as all energy efficient appliances, fluorescent and compact fluorescent lighting, dimmer switches and computer monitors
  • Option to isolate and quantify the higher frequency signals (1kHz – 75 kHz)
  • Low Batt will appear on the display when approximately 1 hour of battery life remains
  • AlphaLabs Gaussmeters are backed by a 1 year manufacturer defects warranty

Additional Features:

  • Measurement Modes: 3 separate measurement modes for Magnetic Field Measurements.
  • LCD Display: Easy to read 5.5 digit display
  • Power Supply: 9 Volt alkaline battery included
  • Battery Life: Approximately 20 hours. Low batt will appear on the display when there is approximately 1 hour of battery life remaining
  • AC Magnetic Fields: Value displayed in milliGauss (mG)
  • Single Axis Measurement: Beneficial for source detection (13 Hz to 75 kHz)
  • 3 Axis Measurement: Beneficial for total exposure measurements in a specific location. Available in two frequency ranges (13 Hz to 75 kHz OR 1 kHz to 75 kHz)

Includes:

  • UHS2 Gaussmeter
  • Users’ Guide
  • 1 Year Warranty for Manufacturer Defects
  • 9V Alkaline Battery
UHS2 3-Axis AC Gaussmeter

Additional information

Weight 0.23 kg
Dimensions 13.5 × 12 × 16 cm
Frequency Range

Electric Field Sensor

Magnetic Field Sensor

Resolution Magnetic Field

Magnetic Field Measuring Range

Accuracy / Basic Tolerance

Battery

Dimensions

Weight of Meter

Case Material

Brand
