Description

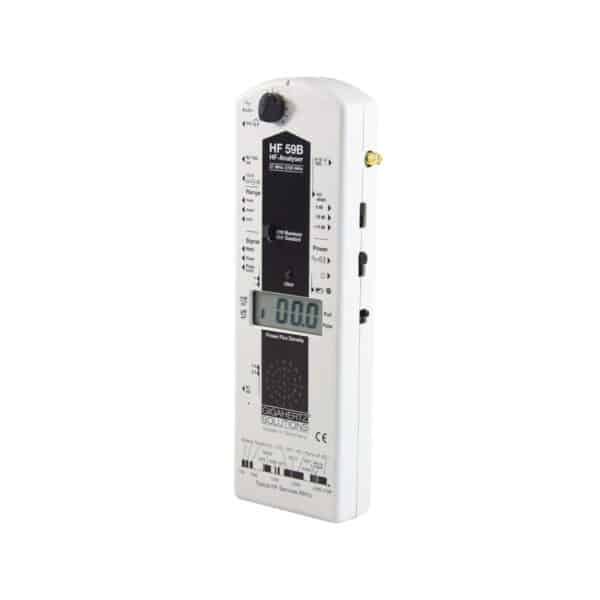

Gigahertz Solutions HF59B RF Meter

This meter includes audio signal analysis and a standard directional antenna, peak hold feature, data output ports.

This meter is compatible with the UBB27 “Quasi” Isotropic Antenna which will extend the measuring range 27MHz – 3.3GHz, and allows for Omni-Directional measurements.

“Know for sure” what EMF levels you are being exposed to – own a Gigahertz Solutions HF59B RF Meter.

Designed to meet Bau–Biologie RF measurement performance requirements.

Sophisticated Source Identification Plus Enhanced Accuracy Features Make the HF59B RF Meter Radio Frequency Analyzer – An RF Technician’s 1st Choice

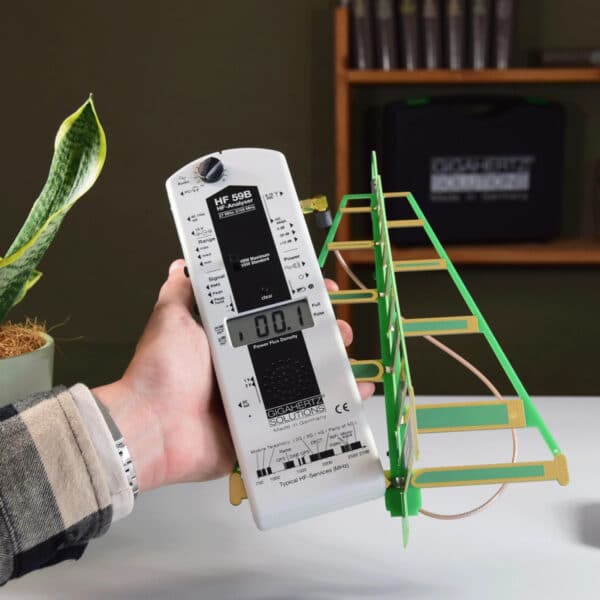

• Equipped with One Antenna – Directional Logarithmic – Periodic Antenna facilitates source identification. Readings increase when the antenna is pointed in the direction of or moved closer to offending sources – Frequency Range of 800 MHz to 3.3 GHz
• Is compatible with the UBB27 “Quasi” Isotropic Antenna which can be purchased separately or as part of the HFE59B Meter Kit
• Optional Pulsed Signal Setting or Analogue Signal Setting: Allows for in–depth signal identification and RF risk assessment. Studies show that digital signals have the greatest biological impact
• AC/DC Outputs for Data Logging Functions: Allows for thorough test site assessment through data logging. Also designed to interface with computers and the NFA 1000 Data Logger
• Detects RF radiation generated by cellular phones and cordless phones (DECT); microwave ovens; Radar; wireless communication devices (such as internet routers, WLAN, Wi-Fi, baby monitors, Bluetooth, video games); smart meters; cell phone towers in the operational range of 700 MHz to 3.3 GHz (GSM, UMTS, 2G, 3G, 4G)

Enhanced Accuracy Features:

• Three Measuring Ranges: (Coarse: 1.0 – 19,999 µW/m² ; Medium: 0.1 – 199.9 µW/m²; Fine: 0.01 – 19.99 µW/m²) Medium range and Fine range options provide added value when needing accurate assessment of moderate to weaker signals
• Option to add Attenuator DG20 G10: the Attenuator boosts the meter’s maximum measuring range by a factor of 100 (20 dB) which means stronger exposure levels can be accurately assessed up to 2,000,000 µW/m²
• Peak Hold Feature guarantees accurately capturing momentary pulses, as in those emitted by smart meters

Also Includes:

• The meter’s audio tone replicates the patterns and intensity of measured RF emissions
• Plug in ear phone accessory is optional
• Comes equipped with both the NiMH rechargeable battery and battery charger, a storage/carrying case designed to hold all of the HFE59B components, it can accommodate an additional RF meter or EMF meter

Additional Features:

• Antennas: Directional Logarithmic Periodic“LogPer” 700MHz – 2.7 GHz 45º
• AC/DC Outputs: Facilitates equipment interfacing: oscilloscopes / spectrum analyzers / full audio assessment /data logging (5 mV DC or 10 mV per digit) switchable
• LCD Display (3.5 digits): Easy toread 3.5 digit display
• Accuracy / Linearity Deviation: +/– 3 dB
• Audible Tone: The meter’s audio tone replicates the patterns and intensity of measured RF emissions
• Signal Detection Type: Peak,Average, and Peak Hold feature – Radar / UMTS / 3G / 4G – Able to measure Analogue and Digital (pulsed) separately
• Power Supply: Rechargeable battery (NIMH supplied) – compatible with 9 Volt alkaline battery
• Battery Recharging Unit: 12 VDC battery charger supplied
• Battery Low Indicator: Meter will auto–power off 3 minutes following battery low signal display
• Auto Power Off: Saves on battery use – will auto–power off after 40 min of continuous EMF testing
• Operating Time: NIMH provides up to 7 hours continuous use/ alkaline disposable provides up to 24hrs continuous EMF testing
• Measuring Ranges: 0.01 –19.99 µW/m² // 00.1 – 199.9 µW/m² // 0.01 – 19.99 mW/m²
• Carrying Case: Sturdy plastic storage/carrying case included

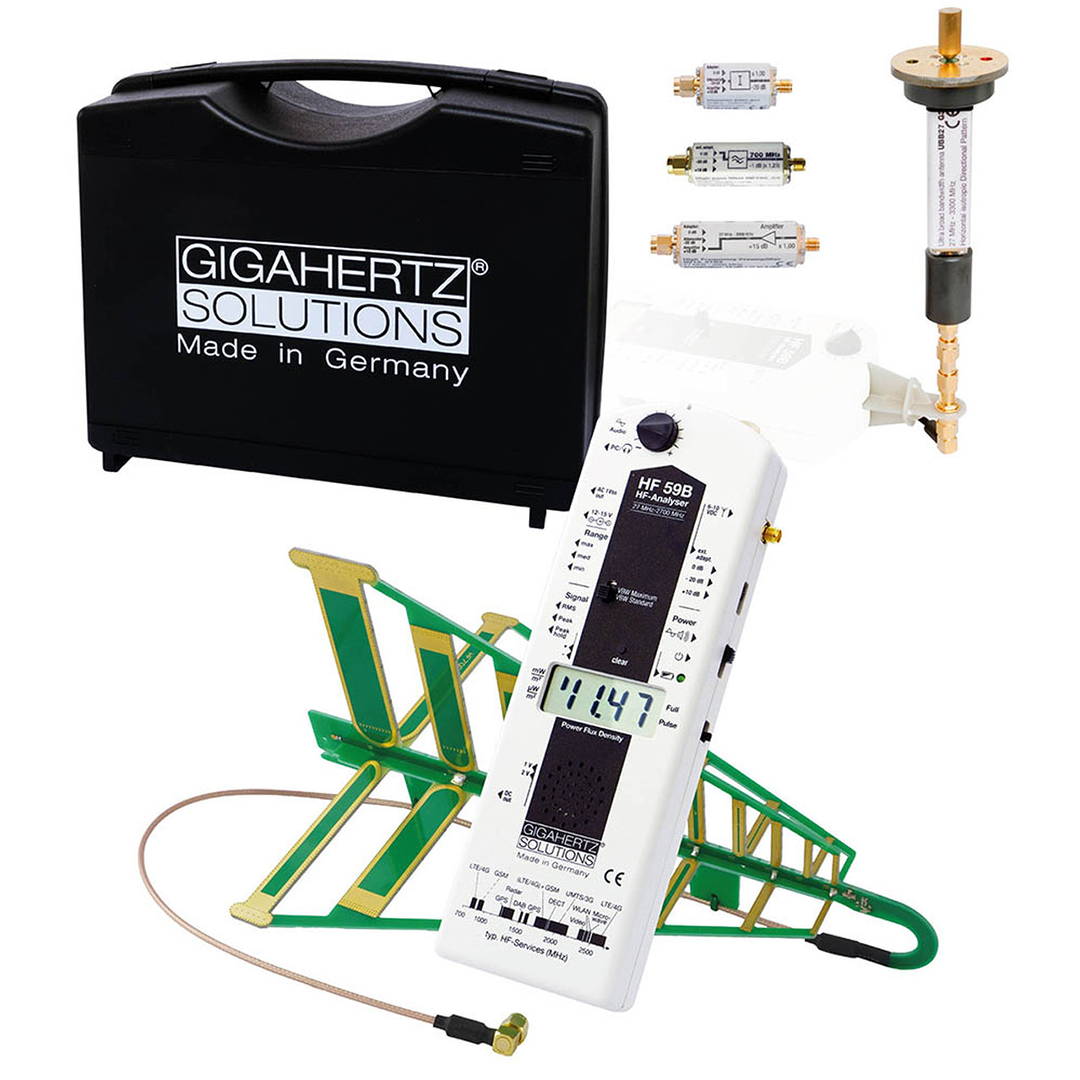

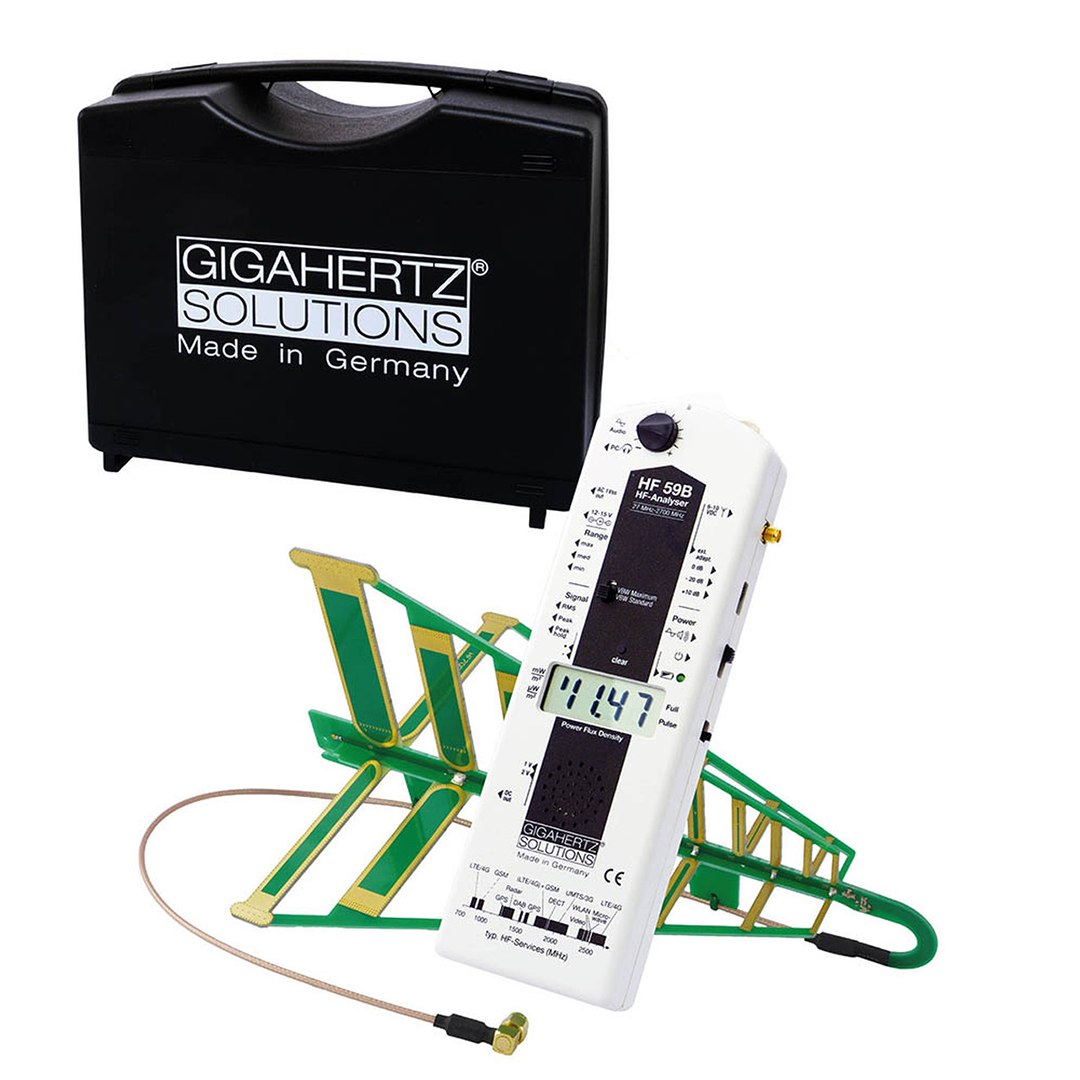

Includes:

• Plastic Carrying Case – K2 (33 x 27 x 16) cm (13 x 10.6 x 6.2) inches
• HF59B Radio Frequency Analyzer
• Antenna – Logarithmic Periodic 700 MHz – 2.7 GHz vertically polarized
• Users Guide – RF Analyzer
• 2 Year Warranty Certificate
• Rechargeable Battery Pack
• 120 VAC Battery Charger (220 VAC charger available on request)
• Silicone protective cover – black

Calibration:

During the manufacturing process strict calibration procedures are followed using only high end, calibrated measurement instruments. This guarantees that every HF59B meter made by Gigahertz has been individually calibrated to a traceable standard.
